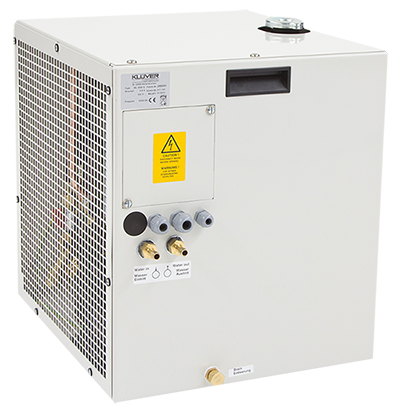

WL3000是3KW的水冷卻器, 閉環式電路控制,用于冷卻單極X射線管。空氣冷卻水進行熱交換器冷卻，而水壓受到可調節旁通閥的限制。
| Dimensions (mm) W x H x D | 480 x 400 x 480mm |
|---|---|
| Weight (without coolant) | 38.5kg |
| Coolant Capacity | 3000W/3.7L |
| Coolant Type | Water or Water/Glycol |
| Performance Data |
|
| Cooling Capacity @ temperature difference of 10° | 2kW – 4kW |
| Flow Rate | >6.0 lpm @ 4 bar |
| Frequency | 50/60Hz |
| Input Voltage | 230VAC |
| Noise Level @ 1m distance | <59 db(A) |
| Environmental Specifications |
|
| Operating Temperature | +10°C – +40°C |
| Storage Temperature | -25°C – +70°C (empty) |
| Air Humidity | 20% – 90% (non condensing) |
| Settings |
|
| Maximum forward pressure | 7 bar ± 0.2 bar |
| Flow switch open | 4l/pm |
| Temperature switch open | 40°C ± 3°C |
