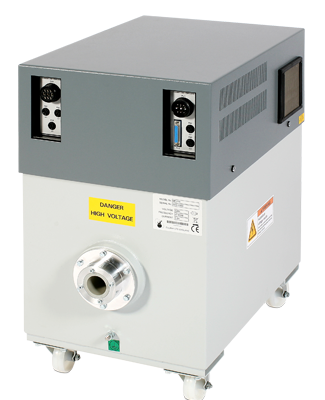

CP系列X射線機整合了較寬范圍的X射線功率和能量頻譜。輸出功率最高到4500W。CP高壓射線機可匹配50KV-450KV輸出電壓的單極或雙極射線管，大功率的CP射線機可以滿足高劑量曝光的應用需求。
| Maximum Power | 3200 W | |
|---|---|---|
| kV Range | 10-100 kV | |
| kV Accuracy | ± 1% of Demand Value | |
| kV Reproducibility | Better Than ± 0.05 kV | |
| High Voltage Ripple | Less Than 5.0V/mA with 10M High Voltage Cable | |
| mA Range | 0 – 75 mA | |
| mA Accuracy | ± 0.5% of Demand Value | |
| mA Reproducibility | Better Than 2μA | |
| Input Voltage | 220 V ±10% 47 – 63 Hz | |
| Input Current | 27 A at 220 V | |
| Output Connector | R24 | |
| Dimensions Cathode (W x H X D) | 435 x 729 x 667 mm | |
| Weight | 220 kg | |
| Storage Temperature | -40° C to + 70° C | |
| Operational Temperature | 0°C to + 40°C | |
| Relative Humidity | 95% | |
| Duty Cycle | 100% | |
| Comms | Analogue / RS232 / RS422 |
