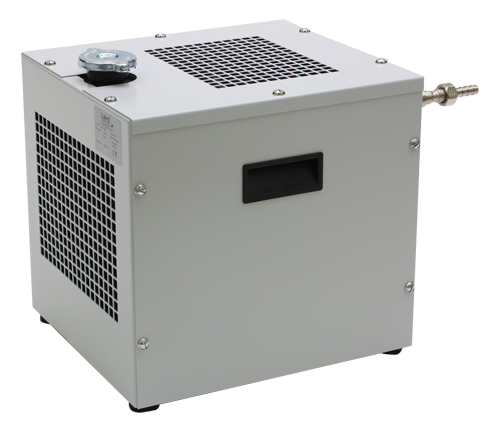

WL1000是1KW的水冷卻器, 閉環式電路控制,用于冷卻單極X射線管?？諝饫鋮s水進行熱交換器冷卻，而水壓受到可調節旁通閥的限制。
| Dimensions (mm) W x H x D | 300 x 292 x 330 cm |
|---|---|
| Weight (without coolant) | 17kg |
| Coolant Capacity | 1000W/1.5L |
| Coolant Type | Water or Water/Glycol |
| Performance Data |
|
| Cooling Capacity @ temperature difference of 10° | 1kW |
| Flow Rate | >4.4 lpm @ 4 bar |
| Frequency | 50/60Hz |
| Input Voltage | 230VAC |
| Noise Level @ 1m distance | <70 db(A) |
| Environmental Specifications |
|
| Operating Temperature | +10°C – +40°C |
| Storage Temperature | -25°C – +70°C (empty) |
| Air Humidity | 20% – 80% (non condensing) |
| Settings |
|
| Maximum forward pressure | 7 bar ± 0.5 bar |
| Flow switch open | 4l/pm |
| Temperature switch open | 47°C |
