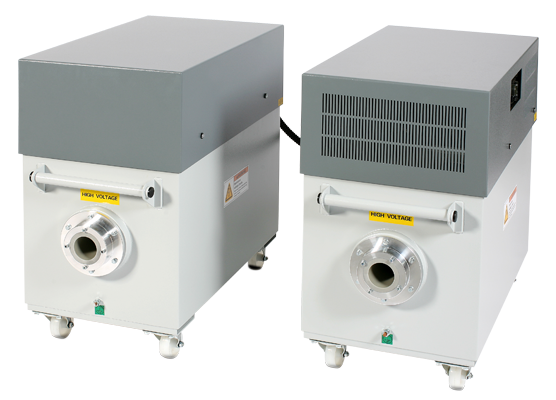

高美的CF系列射線機專門為匹配小焦點高功率（HP系列）射線管而設計，最大輸出功率為1800W，可配用50KV-600KV輸出范圍內的各種電壓的射線管.
CF系列射線機的設計理念是提供性價比更高的解決方案.
利用45KHz的高壓工作頻率和高美獨特的可變頻技術， CF系列射線機成為實用、多功能場合應用的產品.
廣泛應用在無損檢測成像及各種測量和精度校準系統上.
TECHNICAL SPECIFICATION
| Maximum Power | 1500W | |
|---|---|---|
| kV Range | 10 – 550 kV | |
| kV Accuracy | ± 1% of Demand Value | |
| kV Reproducibility | Better Than ± 0.05 kV | |
| High Voltage Ripple | 10.0V/mA with 10M High Voltage Cable | |
| mA Range | 0 – 15 mA | |
| mA Accuracy | ± 0.5% of Demand Value | |
| mA Reproducibility | Better Than 2μA | |
| Input Voltage | 220 V ±10% 47 – 63 Hz | |
| Input Current | 13 A at 220 V | |
| Output Connector | R30 | |
| Dimensions Cathode (W x H X D) | 468 x 675 x 870 | |
| Dimensions Anode (W x H X D) | 468 x 675 x 870 | |
| Weight | 439 kg (combined) | |
| Storage Temperature | -40° C to + 70° C | |
| Operational Temperature | 0°C to + 40°C | |
| Relative Humidity | 95% | |
| Duty Cycle | 100% | |
| Comms | Analogue / RS232 / RS422 |
