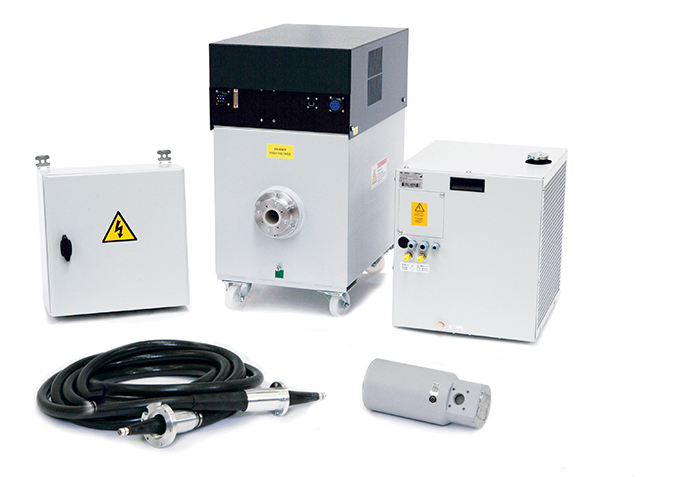

GXL225-S是整套的225kV的x射線解決方案，直接用于OEM系統集成，適用于所有x射線應用并廣泛用于安全背散射。
技術規格
| Max Power | 4500W | |
|---|---|---|
| Kv Range | 5-225 | |
| kV Accuracy | + 1% of demand Value | |
| kV Reproducibility | Better than + 0.01kV | |
| High Voltage Ripple | <5.OV/mA with 10m High Voltage Cable | |
| mA Range | 0 – 30mA | |
| mA Accuracy | + 0.5% of demand Value | |
| mA Reproducibility | Better than 2uA | |
| Input Voltage | 220V + 10% 47 – 63 Hz | |
| Power Factor | Active PFC better than 0.98 | |
| Input Current | 25A A at 220V | |
| Output Connector | R24 | |
| Dimensions mm (W X H X D) | 412 x 785 x 662mm | |
| Weight KG | 165 kg | |
| Storage Temperature | -40°C to + 70°C | |
| Operational Temperature | 0°C to 40°C | |
| Relative Humidity | 95% | |
| Duty Cycle | 100% | |
| Comms | Analogue/RS232/RS422/Ethernet |
